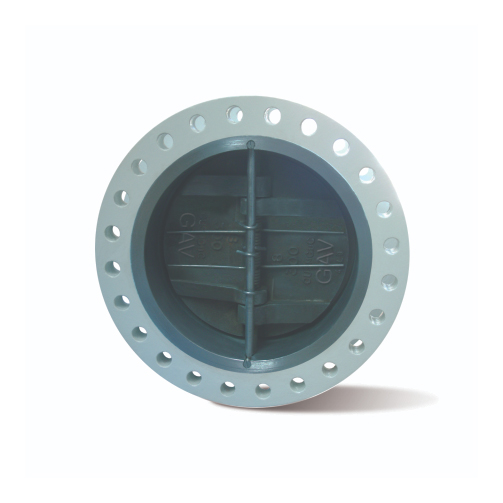

Dual Plate Check Valves

Design Features:
The Dual Plate Check Valve is a multi-purpose valve that is stronger, lighter and smaller compared to conventional swing check or lift check valves.

Separate springs are provided for each door to close. This reduces and overcomes the frictional coefficient due to one plate resting upon another. The spring life cycle is studied and the dynamic behaviour of the valve is recorded. This type of valve prevents flow reversal, functions silently and totally prevents “Water Hammer”. It’s generally light weight, and can be mounted in any direction (Horizontal/Vertical). Also, it has a high CV value and less pressure drop. It’s designed for non-slamming action that prevents premature valve failure, and the valve functions silently for longer duration.

Applications:
Chemicals, Fertilizers, Refineries, Effluent Treatment Plant
Operators:
Automatic Spring return.
Special Features:
Rubber Lined, Soft Seated

Manufacturer: Global Arabian Valves (GAV)

Price:

Category:
  RFQ

Description

Production Capacity: 2″-12″ – 150 Nos/Month, 14″ & above – 50 Nos/Month

Material Size Range Construction ANSI Class Standard
Cast Carbon Steel / Cast Aloy Steel 2″ – 36″ Wafer / Flanged, 150# – 2500# API 6D / API 594
Cast Stainless Steel 2″ – 36″ Wafer / Flanged, 150# – 2500# API 6D / API 594
Bronze 2″ – 36″ Wafer / Flanged, 125# BS 5351

Temperature range: -100°C to 600°C

Pressure Rating: Vacuum upto 621 Kg/Cm²

Inspection Std.:API 598

Ends: Flanged, Wafer, Lugged
