Gate Valves

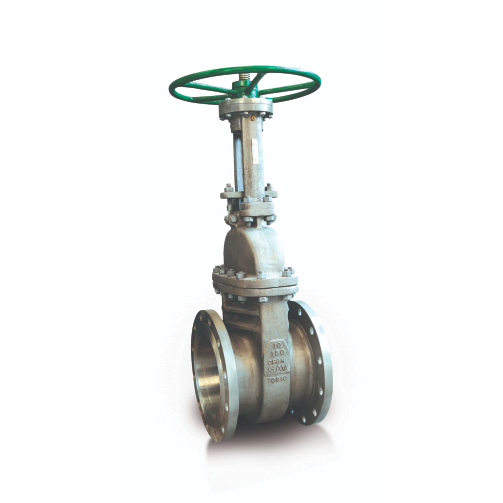

A Gate Valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid.
Designed for high pressure and high temperature applications, for a wide range of fluids except slurries and viscous fluids. These valves are generally used in the wide open or closed position, are not recommended for throttling service because throttling causes disc chattering and vibration which is likely to erode the seating surface and cause leakage.

Applications:
Petroleum, Power Generation, Chemicals, Fertilizer, Steel industry, Isolation Drain, Shut-Off Valves, Feed Water and Steam
Operators:
Handwheel, Chainwheel, Gear Electrical Actuator, Pneumatic/Hydraulic, Actuator Operated.
Special Features:
Pressure Sealed joints/ Double Block and Bleed/ Cryogenic Service to BS 6364/ Nace Specifications (MR-01-75), Position Indicator, Drainplug & Bypass Arrangement

Manufacturer: Global Arabian Valves (GAV)

Price:

Category:
  RFQ

Description

Production Capacity: 2″-12″ – 550 Nos/Month, 14″ & above – 150 Nos/Month

Material Size Range Construction ANSI Class Standard
Cast Carbon Steel / Cast Aloy Steel 2″ – 36″ Bolted or Pressure Sealed 150# – 2500# API 600,
BS 1414,
API 6D
Cast Stainless Steel 2″ – 36″ Bolted or Pressure Sealed 150# – 2500# API 600,
BS 1414,
API 6D
Bronze 2″ – 10″ Bolted Bonnet 150# – 600# API 600,
BS 1414

Temperature range: -100°C to 800°C

Pressure Rating: Vacuum upto 621 BAR

End to End Dimension: ANSI B 16.10/ DIN 3230

Inspection Std.: API 598/ BS 6755

Ends: Flanged/ Buttweld
