LDPE Pipe

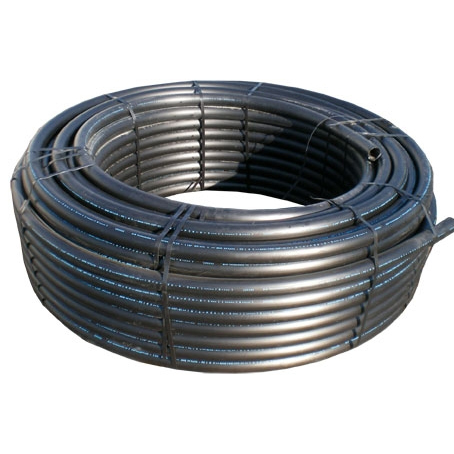

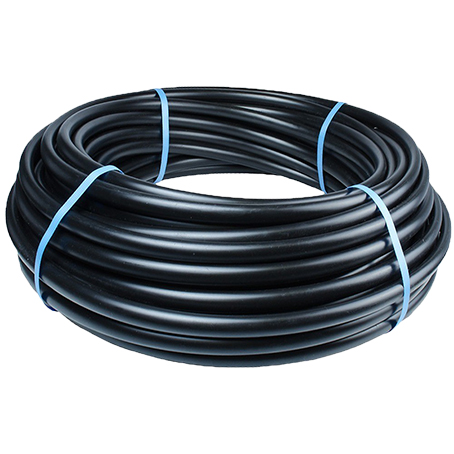

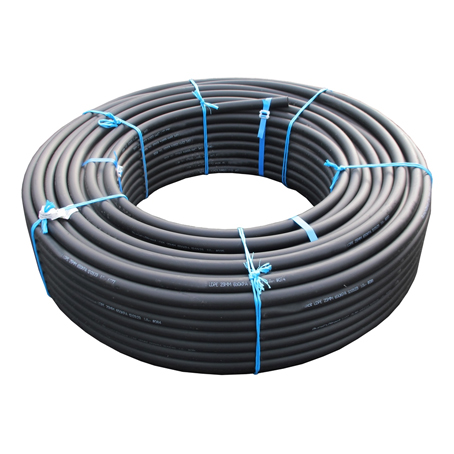

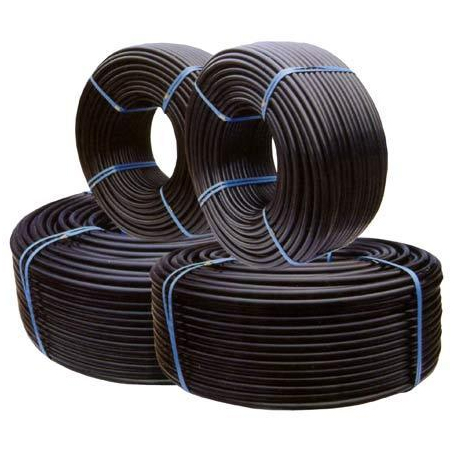

Low Density Polyethylene Pipe (LDPE) Supply pipe delivers water around an irrigation system from the water source to the micro (or feeder) pipe for delivery to emitters. Suitable for above ground installation, supply pipe is not usually very flexible and therefore connectors can be used to direct supply pipe around corners.

Manufacturer: Al-Jubail Sanitary Pipe Factory

Price:

Category:
  RFQ

Description

LDPE Pipe Dimensions based on DIN 8072 from sizes 16mm to 32mm OD with a working pressure of 4 bars at 20ºC.

Outside Diameter  Wall Thickness
16 mm 1.2 mm / 1.5 mm
20 mm 1.5 mm
25 mm 1.5 mm/2.0 mm
32 mm 2.0 mm

LDPE Pipe Dimensions based on Australian Standard AS 2698.1 for drip irrigation Tubing(Type 30), with a working pressure of 3 bars at 20ºC.

Nominal Size
(MM)

Nominal Inside
Diameter (MM)

Wall Thickness
(MM)

Nominal Weight
(kg/m)

13

12.9

12

0.051
16 16.0 12 0.062
19 19.1 13 0.080
25 25.4 1.5 0.121
GR Dripline. Lenghts for 10% Flow Variation on Ground with Zero Slope.

16 mm Outside Diameter

20 mm Outside Diameter

Code

No.

S

cm

Q

LPH

Wt.

Kg.

Code

No.

S

cm

Q

LPH

Wt.

Kg.

Code

No.

S

cm

Q

LPH

Wt.

Kg.
GR 16433 33 4 22.95

GR 16240

40

2

22.00

 GR 20440 40 4 31.00
GR 16440 40 4 22.45 GR 16250 50 2 21.45 GR 20450 50 4 30.00
GR 16450 50 4 21.70 GR 16260 60 2 21.00 GR 20460 60 4 29.35
GR 16460 60 4 21.25 GR 16275 75 2 20.75 GR 20475 75 4 28.00
GR 16475 75 4 20.75
