Description
APPLICATION

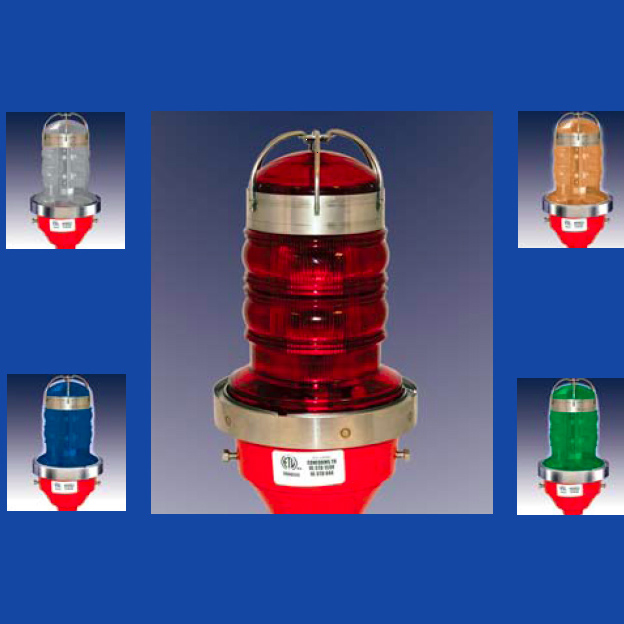

The Visual Signal Light is an LED based Class I
Division 2 certified fixture. Used for visual indication in
hazardous environments, these fixtures provide a
valuable solution to the petrochemical industry as well
as other facilities in demanding and dangerous
environments.
FEATURES / BENEFITS
• Suitable for all Class I, Div. 2, Groups A, B, C, D
hazardous environments, T4 rated
• Inherent safety capability; low electrical/thermal
energy and high light output
• Unique optically designed lens to enhance LED
operation and provide 360° visibility
• Weather/corrosion resistant lamp assembly and
housing
• Self-contained wiring compartment eliminates
additional boxes
• Available as a single or dual unit
• Resistant to shock and vibration
• Threaded 1” and ¾” bottom hub for mounting
• Can be operated steady or flashed
• Estimated service life 12-15 years
• 5 year warranty
• IP65 / IP66 / NEMA 4X rated
OPERATING CONDITIONS
Temperatures ranging from -67° F to +131° F (-55° C
to +55° C). It will withstand wind in excess of 150 mph
(240 kph), salt fog.Note: X indicates voltage input (See Voltage Chart) Note: X indicates voltage input (See Voltage Chart)
MATERIALS / FINISH
• Cast Aluminum housing
• Stainless steel hardware
• Electrostatically applied powdercoat of aviation
orange paint
