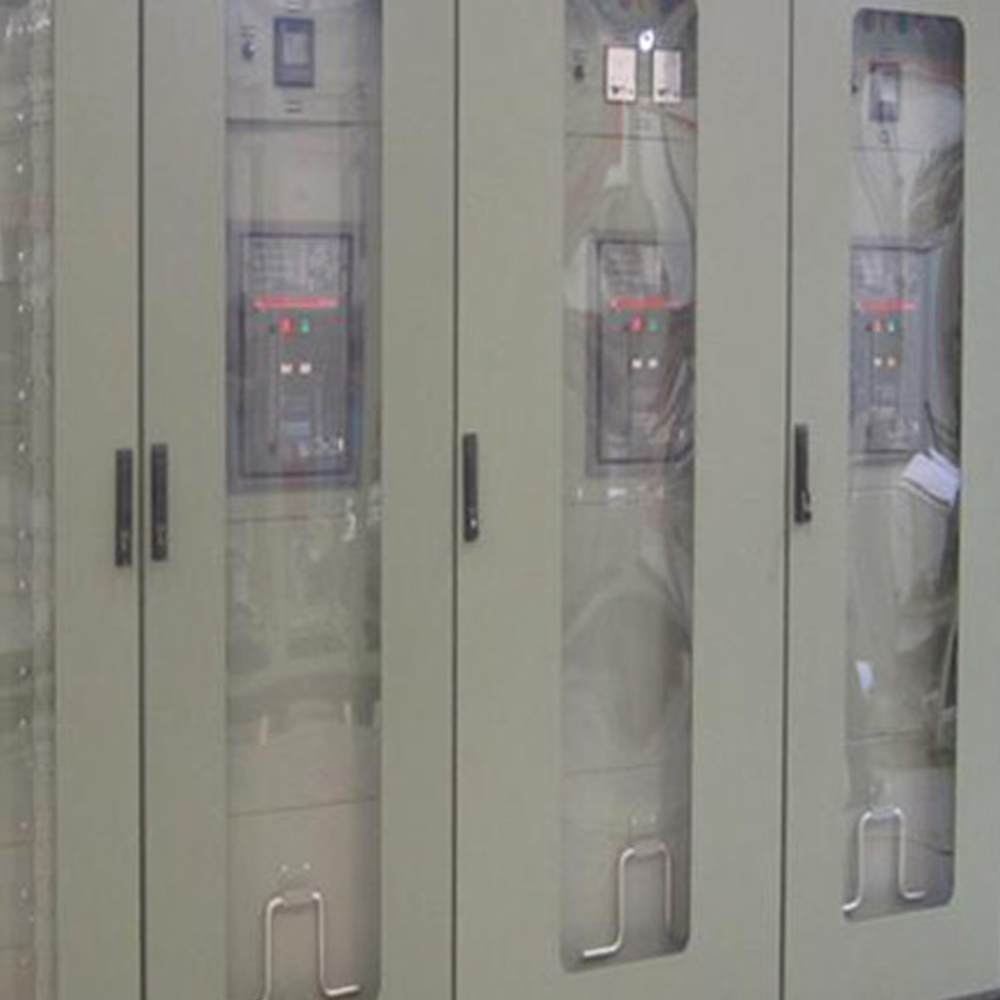

Low Voltage Switch Gear

Application
Power guard low voltage switch gear generally installed downstream of LV transformers and generators. These are feeding to distribution panel board motor control center
It is manufactured as per IEC-60439-2 and 61439-2 the POWER GUARD switch gear are designed modular form with standardized section easy to fit customer requirement, It can be facilitate to communicate with SCADA and BMS, The ratings are up to 6300A in form 1 to form-4b

Manufacturer: AL ASRY Electric Co. Ltd.

Price:

Category:
  RFQ

Description

Construction

  • The frame are manufactured from high quality galvanize steel 2 to 3mm thickness
  • The door are manufactured same as above material 1.5 to 2mm thickness
  • Paint finish polyester powder coated RAL 7035 as standard other colors on request
  • Bus bar are 99.9% tinplated copper. silver plating on request
  • Current density of bus bar are 1.6A/mm^2 neutral bus bar 50% of phase 100% on request and ground bus bar 50% of neutral 100% on request
  • Designed for Ambient temperature 50 degrees Celsius
  • Modular designed switchgears are extensible by standard modules. any other features cam be added on request

Design Standards

  • IEC-61439-2
  • IEC-60439-2
  • NEC-VL891
  • NEMA-PB2

Degree Of Protection

  • IP-41
  • IP-54
  • IP-55

Nema Standard

  • NEMA-1
  • NEMA-12
  • NEMA-3
  • NEMA-3R
  • NEMA-4
  • NEMA-4X
