Package Substation

Application

Power Guard substations are combination of transformers, Ring Main Units &l.V switchgear used for effective electrical power distribution. These are used in the medium voltage secondary distribution system

Manufacturer: AL ASRY Electric Co. Ltd.

Price:

  RFQ

Description

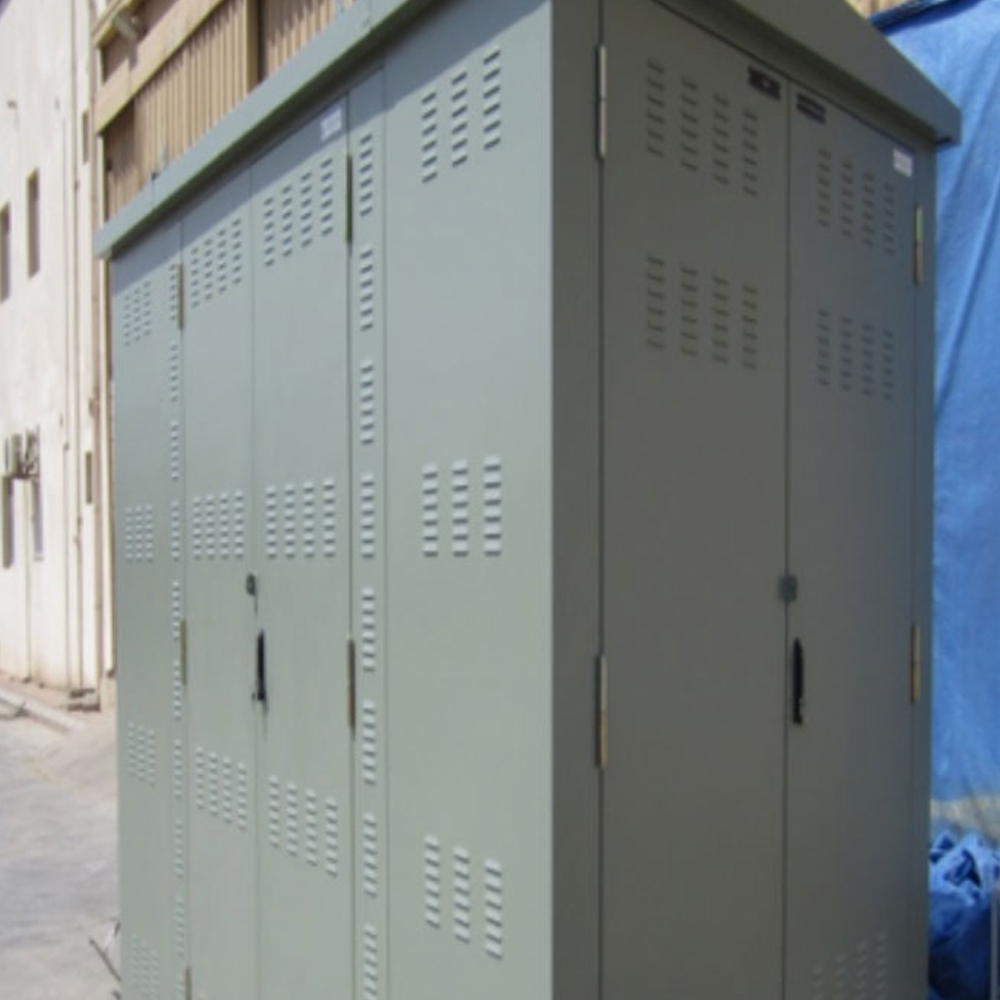

1600KVA PACKAGE SUBSTATION

1600KVA PACKAGE SUBSTATION



Features

  • Transformer connection direct or through cable to RMU
  • LV connection through bus duct
  • Common skid for all equipment separate doors for access to individual compartments for easy operation & maintenance
  • Housing fabricated from high quality electro-galvanized steel with sloping double roof canopy
  • Polyester powder coated paint finish- RAL 7033 as per SCECO specifications. Other colors available on request.
  • Indoor &outdoor applications
  • Customized to all site conditions

Specifications

  • Transformers (Oil immersed or dry type) up to 1600KVA at any voltage class
  • LVS switchgear up to 6000A (KEMA Tested)
  • SF6 Insulated Ring Main Units
