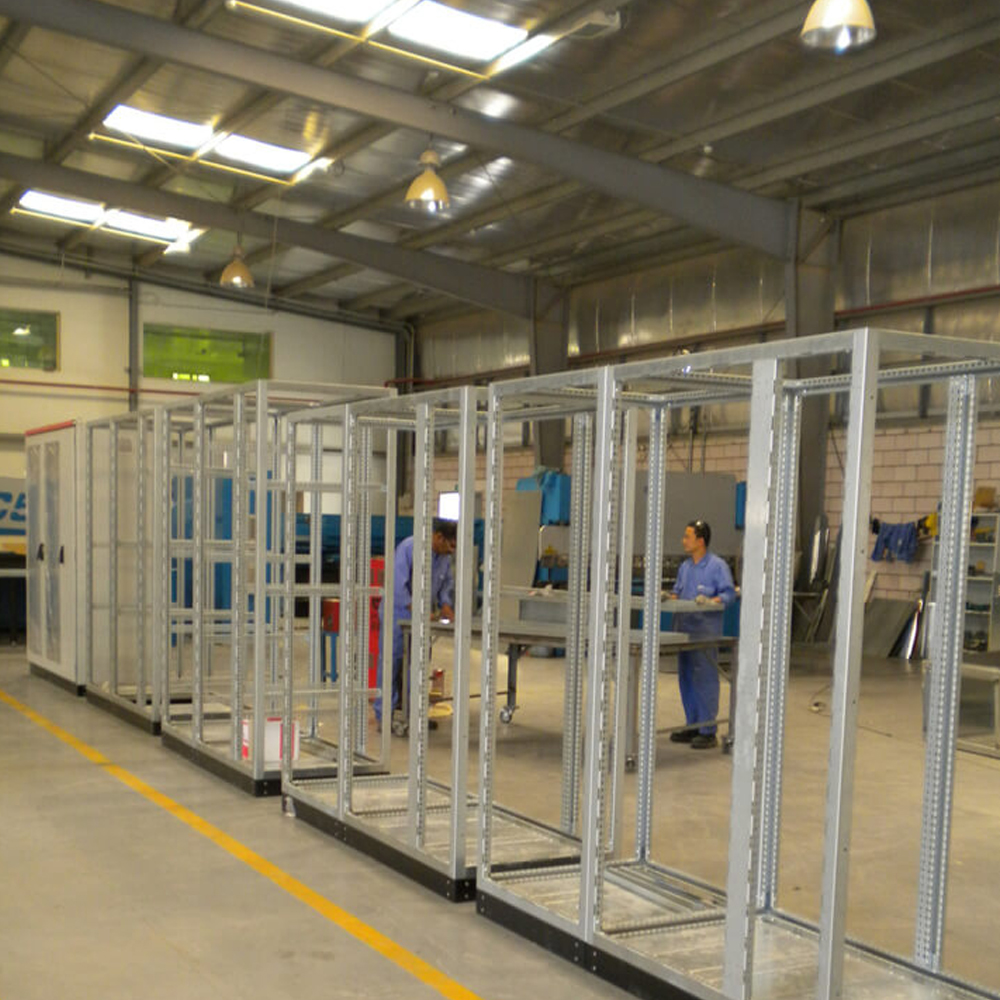

Stainless Steel Enclosures

Manufacturer: AL ASRY Electric Co. Ltd.

Price:

  RFQ

Description

Salient Feature Of MCC/PCC Enclouser

  • fully compartmentalized design
  • Drawot trolleys/module incoming and outgoing power and control contacts automatically, isolate    without manual disengagement in three distinct position i.e. service, test isolate
  • All Drawout units are fully interchangeable.
  • Totally enclosed vermin and dustproof.
  • Safety shutters provide accidental contact from vertical busbars.
  • Latest design of our Drawout encloser provide mainteneance free vertical busbars without joint.
  • Main busbar HBB are approachable from the top.
  • Self aligning and disconnecting power and control contact.
  • Racking screw arrangement with telescopic rails system provide safe and sure.
  • Smooth movement like Drawout and insertion of module.
  • New design provide top and bottom guide along with swiveling lever for easy module withdrawal without tools.
  • Modular construction with wide choice of compartment size.
  • Standard module size minimum 225mm and upto 1500mm height in step of 75mm.
  • Bolted design and assembly allow ease of alteration or extension at site.
  • Hinged auxillary door inside main compartment door permit mounting of control acsessories, such as meters, selector switch, indicating lamps.push buttons and reset actuator.
  • Further this system improve better utilization of equipment plate and total interchangebility of trolleys.
  • Spring loaded scraping earthing provided with first make and last brake arrangement.
  • Maximum eight numbers auxiliary busbar center provide in top chamber and segregration from HBB zone.
  • Large cabling space with adequate cable supports are provided in CBC.
  • Incoming and outgoing stab in type power contacts up to 800Amps. provide very large range of feeders of different types.
  • Thousands of above specified design Drawout MCC/PCC are satisfactory working in all type of industries in India and abroad
